IntelliPrep TRIO 240 Sample Preparation System
Fully automated sample-to-PCR preparation system for molecular diagnostics
Product Overview
- End-to-end integration: extraction + quantification + normalization + PCR setup in one system
- Primary sample compatibility: process FFPE tissue, whole blood, buffy coat, plasma, nasopharyngeal swabs, and suspension cells without pre-treatment
- Fluorometric quantification with automatic dilution and concentration adjustment
- Visual workflow builder with animated guidance — minimal training required
- Flexible operation: all four modules can run independently or in any combination
The IntelliPrep TRIO 240 is the first fully integrated, walk-away sample preparation platform that takes a primary clinical specimen and delivers a PCR-ready plate — without a single manual pipetting step between extraction and assay setup. By combining four process stages in a single run, laboratories eliminate the handoff errors and time losses that occur when separate instruments or operators handle extraction, quantification, and PCR setup.
Processing up to 24 samples simultaneously, the system employs a fixed 24-channel magnetic-pipette mechanism that ensures consistent liquid transfer at every step. Fluorometric quantification is built in, enabling precise DNA concentration measurement and automatic normalization before assay mix preparation — so every well receives the exact input your downstream application requires.
BIOTYPE offers the IntelliPrep TRIO 240 in Germany and Austria with full distributor service: installation, operator training, application support, and integration guidance for PCR, digital PCR, NGS, and multiplexing workflows.
Downstream Applications
- qPCR: automated assay setup with precise volume delivery
- Digital PCR: controlled input concentration for accurate copy-number quantification
- NGS: normalized DNA ready for library preparation, reducing failed libraries from over/under-input
- Multiplexing: compatible with third-party assay systems
Technical Specifications
General
- Model
- TRIO240
- Throughput
- Up to 24 samples per run
- Operating Temperature
- 10 °C – 35 °C; 10–85 % RH (non-condensing)
- Power
- 100–240 V, 50–60 Hz, 300 W
- Dimensions (W × D × H)
- 660 × 831 × 730 mm
- Weight
- 133 kg
Extraction Performance
- Pipette Type
- Fixed 24-channel magnetic-pipette system
- Pipette Range
- 50 µL – 1,000 µL
- Pipette Accuracy
- 5 µL: <±20 % | 20 µL: <±7 % | 100 µL: <±3 % | 500 µL: <±2.5 %
- Pipette Precision (CV)
- 5 µL: <10 % | 20 µL: <5 % | 100 µL: <1 % | 500 µL: <0.5 %
- Temperature Range
- Ambient to 95 °C
- Temperature Accuracy
- ±1 °C at 60 °C
- Temperature Uniformity
- ≤ 4.5 °C at 60 °C
- Robotic Arm Positioning Accuracy
- ±0.1 mm
- Processing time
- Varies by extraction kit
Liquid Handling Performance
- Pipette Type
- Fixed 1-channel
- Pipette Range
- 2 µL – 10,000 µL
- Pipette Accuracy
- 2 μL ≤6 % | 10 μL ≤2 % | 20 μL ≤2 % | 100 μL ≤1 % | 200 μL ≤1 % | 1000 μL ≤2 %
- Pipette Precision (CV)
- 2 μL ≤7 % | 10 μL ≤2 % | 20 μL ≤1.5 % | 100 μL ≤0.75 % | 200 μL ≤0.75 % | 1000 μL ≤0.75 %
- Robotic Arm Positioning Accuracy
- ±0.1 mm

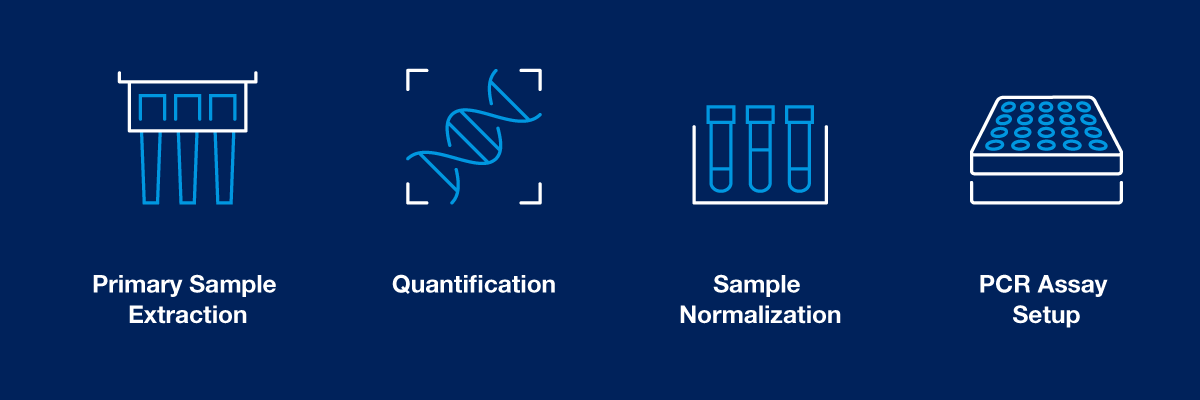

Workflow
The IntelliPrep TRIO 240 executes four fully automated process stages in a single, uninterrupted walk-away run: (1) Primary Sample Extraction — automated nucleic acid isolation from FFPE tissue, whole blood, buffy coat, plasma, nasopharyngeal swabs, and suspension cells using the fixed 24-channel magnetic-pipette system, with no manual pre-treatment required; (2) Quantification — integrated Fluorometric measurement of DNA concentration for each of the 24 samples simultaneously; (3) Sample Normalization — automatic dilution and concentration adjustment ensures every sample reaches the exact target input required for downstream assay performance or NGS library preparation; (4) PCR Assay Setup — automated assay preparation and precise volume delivery into PCR-ready plates. From primary sample to assay-ready plate, the entire process requires no manual intervention.
Resources
Ordering Information
IntelliPrep TRIO 240 Sample Preparation System
Cat. No.: 80042
Status: CE-IVD
Availability*: Germany, Austria
*BIOTYPE GmbH is the exclusive distributor of the PlexBio IntelliPrep TRIO 240 product range in Germany and Austria. Legal manufacturer is PlexBio Co., Ltd.
Delivery to Germany and Austria only!
