Matrix Standard BT5 multi
Spectral alignment for Genetic Analyzers, ensuring reliable fragment analysis and optimal performance of Mentype® assays
Product Overview
- Accessory for Mentype® multiplex PCR assays
- Set-up solution for the best performance of your instrument
- Minimization of spectral overlaps and artifact formation
- Registered CE-IVD product according to EU 2017/746 (IVDR)
The Matrix Standard BT5 multi is a spectral alignment tool designed to prepare your Genetic Analyzer for the reliable use of Mentype® Chimera® PCR Amplification Kit, Mentype® DIPscreen PCR Amplification Kit, Mentype® AMLplexQS PCR Amplification Kit, and Mentype® AMLplus Mutation Analysis Kit. It contains five PCR amplicons, each labeled with a distinct fluorophore. Analysis of these amplicons enables the calculation and correction of spectral overlap between the emission spectra of the individual dyes. This spectral calibration allows the simultaneous detection of all five fluorophores in a single capillary, reduces pull-up peaks and other artefacts, and supports accurate fragment analysis and reliable data interpretation.
Technical Specifications
- Panel
- 6-FAMTM, BTG, BTY, BTR, BTO
- Reactions
- 1 µL per capillary
- Turn-around time
- ~ 1 h
- To be used with
- Standard thermal cycler + Thermo Fisher Genetic Analyzer
- Data analysis
- Data Collection Software of Genetic Analyzer
- Accessory for
- Mentype® AMLplexQS, Mentype® AMLplus, Mentype® Chimera®, Mentype® DIPscreen

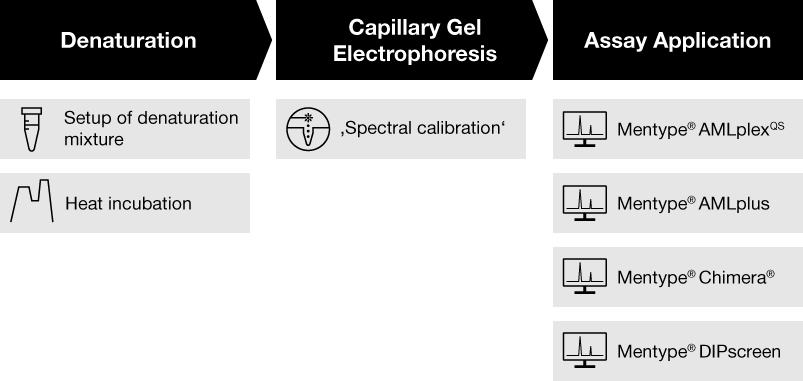

Workflow
Resources
Ordering Information
Matrix Standard BT5 multi
Size : 25 µL
Cat. No.: 45-15100-0025
Status: CE-IVD
Matrix Standard BT5 multi
Size : 2x25 µL
Cat. No.: 45-15100-0050
Status: CE-IVD
